    380V 415V Steel Metal Vertical Tank Dished End Polishing Machine Grinding Equipment

    Steel metal vertical tank and dished head automatic Polishing machine grinding equipment

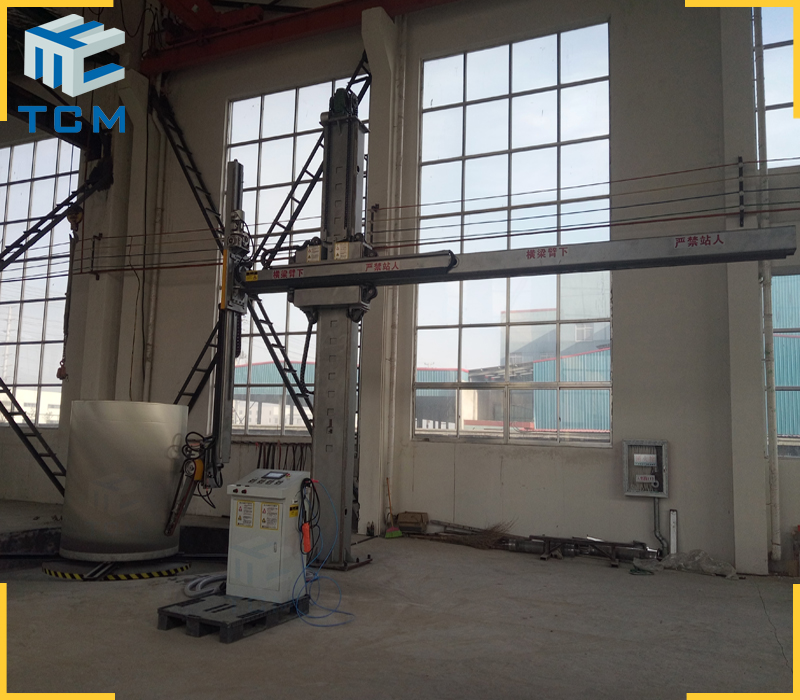

    TCM-CZJ column and boom manipulator automatic polishing machine,is designed for polishing huge pressure vessel head /tank cap inner outer surface grinding and buffing.Besides tank heads,it’s also could polish steel tank shell in vertical way.It is widely applied to pressure vessel industries,medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.


    Machine tool principle: By rubbing workpiece’s surface against abrasive belt or buffing wheel,the inner and outer surfaces of the head and the welded seam joint can be ground and polished to improve the surface roughness of the workpiece. One end of the beam is equipped with a small column for walking up and down, which is stable in operation and precise in control. When the polishing operation is performed, the main beam does not run up and down.


    Technology:This model adopt whole-process constant-pressure (pneumatic) grinding technique to realize internal and external grinding and polishing of the tank body (head).


    Electric appliance: The beam moves forward and backward automatically according to the programming.The workpiece can be rotated automatically by frequency conversion to realize continuous automatic polishing and grinding of workpiece, which meets the requirements of batch production, single-piece and multi-species machining, etc.


    Frequency conversion: The workpiece rotation and transverse movement are stepless speed regulation of frequency conversion,which can further improve work efficiency.


    SPECIFICATIONS FOR TCM-CZJ vertical tank & dished head automatic Polishing machine

    Polishing work piece size
    (Tank Vessel)

    Inside diameter

    500-6000

    mm

    Outside diameter

    500-6000

    mm

    Length(Height)

    <= 2500

    mm

    working capacity
    (Dish head)

    Dish head diameter

    500-6000

    mm

    Turntable Max.loading capacity

    1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.

    Polishing precision

    Surface roughness(Ra)

    <= 0.25

    μm

    Machine Weight

    /

    4100

    KG

    Machine Dimension

    (L x W x H)

    /

    5000x800x5800

    mm

    Column Dimension
    (LxW*Thickness)

    /

    350x450x10

    mm

    Motoried Arm
    (LxW*Thickness)

    /

    200x250x8

    mm

    Input Total Power

    /

    22

    KW

    Work Efficiency

    /

    6~12

    m2/Hour

    Power Supply

    380V 415V / 50Hz 60HZ / 3p or Customization

    Suitable Polishing Material

    Abrasive sanding belts,grinding wheels.

    (flap/cloth/ emery/Nylon wheel etc)

    TCM-CZJ polishing machine (5).jpg


    Trancar Industries polishing machine delivery and package:


    Contact Trancar Industries for more automatic polishing solutions:
