Steel tank head polishing machine,steel dish head CNC full
automatic polsihing machine from China.

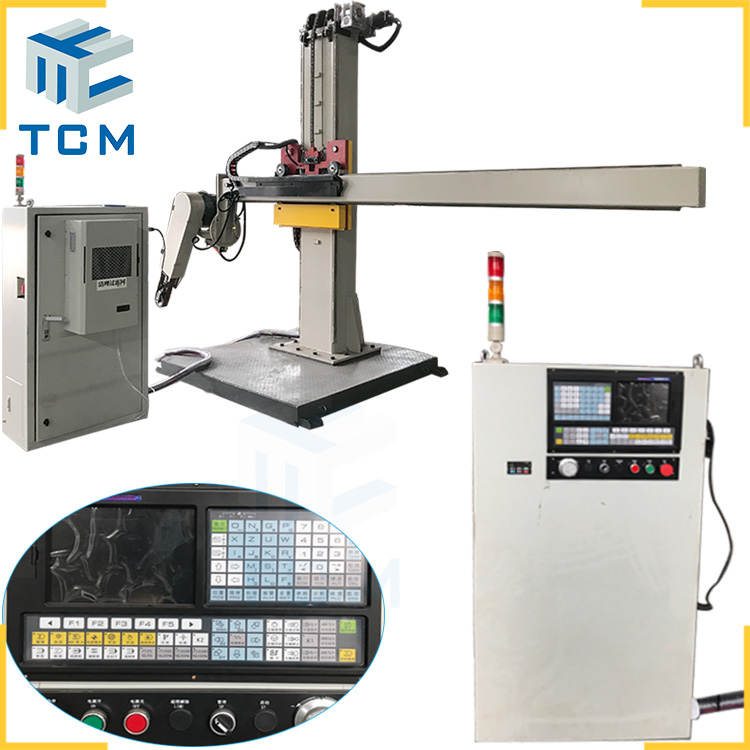

TCM-CNC-D column and boom manipulator polishing machine is CNC full
automation polishing machine for stainless steel tank dish end
surface polishing,steel tank end surface grinding and steel tank
head surface buffing.It could process steel products' inner and
exteriors.And widely used in stainless steel Elliptical head,flat
bottom head,torispherical head,conical head and hemispherical heads
manufacturers and fabricators. Trancar Industries company
fabricating CNC polishing machine based on client's dish ends
dimensions.
TCM CNC polishing machine is made up of metal beam,column,machine
base(foot),control cabinet and turntable,also with Siemens brand or
Danfo brand CNC program,More than 100 polishing programs could be
set in our CNC polishing machine.Using impeller with different
grinding mesh grit to meet the demand on polishing.At the same
time,both abrasive sanding belts and grinding wheels are available
on Trancar steel dish end CNC polishing machine.
Trancar Indsutries dish end CNC polishing machines are widely used
in the fields of pharmaceutical,medical machinery,food &
beverages,water purification,Pressure vessel,Paper and pulp
industry,Fine chemical,Petrochemical,biochemistry,petroleum
pipeline,Cosmetic,waste water treatment,Semiconductor
industry,Photovoltaic industry etc.
Trancar CNC dish end polishing machine parameter:
Normal configuration(customer design acceptable) |
Dish end size | Outside diameter | 300~5000mm |
Inner diameter | 500~5000mm |
Height/Depth | Max.750/1500/2000mm |
Control system | SIEMENS CNC program |
Danfo CNC program |
Turntable Max.loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20
Ton. |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Total Dimension | Machine Dimension | 4500*1600*3080mm |
Column Dimension | 300x400x8 mm |
Beam Dimension | 150x250x6 mm |
Input total Power | / | 15 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
Machine Weight | / | 3000kg |
Color | Grey/Green/Blue/Red/Yellow Custom design |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
Trancar Indsutries Machinery's packaging and delivery:
Related TCM machines recommend:
Beside steel dish head CNC polishing machine,Hefei Trancar
Industries also provide
Flat sheet welded joints grinder,Steel tank shell polishing
machine,PLC automation polishing machine,welded joints planishing
equipments etc.CNC polishing machine #dishendpolishingmachine
