    Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel

    Ask Lasest Price
    Brand Name : Trancar Industries
    Model Number : TCM-X
    Certification : CE/ISO
    Price : USD 3000-5000 Dollar
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20 sets per Month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

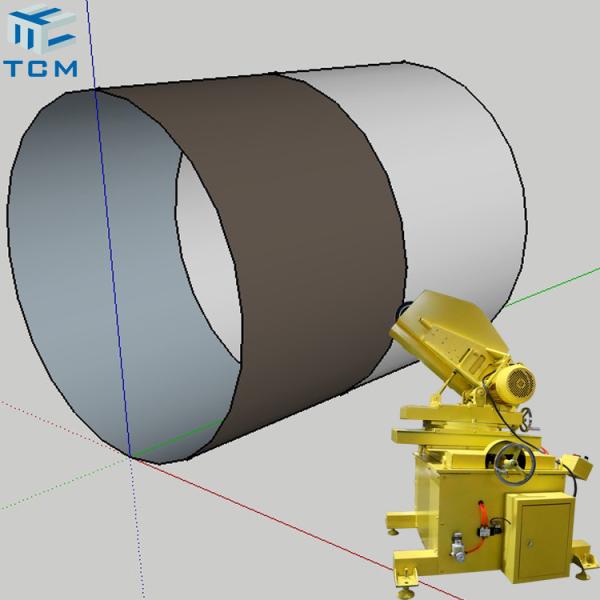

    Body Circular Welded Seam Polishing Grinding Machine Steel Tank Shell Vessel

    Stainless steel tank shell circular welded seam surface automatic polishing grinding machine.


    Trancar Industries TCM-TW tank shell circular welded seam automatic polishing machine is designed for steel tank shell circular welded seams (joints) surface treatment with special welded seam grinding head system,This model is suitable for all kinds of steel tanks & pipes’ circular welded seams joints’ surface polishing grinding and buffing.such as steel tank circular welded seams and joints.This machine is widely used in medical area,chemical,environmental purification,food,beverage and water filter,etc.


    It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.


    Custom design welded seam polishing solutions are available based on your demands for your steel tank vertical or horizontal welded seam surface grinding and polishing accordingly.


    Steel tank circular welded seam auto polishing machine parameter:

    Normal configuration(customer design acceptable)
    Tank Circular Welded Seam SizeTank Shell Diameter450-5000 mm
    Weld Seam Width≦ 60 mm / 75 mm
    Tank Shell Length≦6000 mm
    Tank Roller Max.Loading capacity1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.
    Polishing PrecisionSurface roughness(Ra)<=0.25μm
    Production EfficiencyPolishing working speed6~12 m2/h
    Machine Dimension900x900x1500 mm
    Input total Power/8 kw
    Power Supply380V 415V / 50Hz 60HZ / 3p or Customization
    Machine Weight/600 kg
    ColorGrey/Green/Blue/Red/Yellow Custom design

    Contact us for more welding seam removal solutions
