    Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine

    Ask Lasest Price
    Brand Name : Trancar Industries
    Model Number : TCM-XTC
    Certification : CE/ISO
    Price : USD 9000-25000 Dollar per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20 sets per Month
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    Steel Tank Shell Vessel Body Circular Welded Seam Auto Polishing Machine

    Trancar Industries TCM-TW tank shell circular welded seam automatic polishing machine is designed for steel tank shell circular welded seams (joints) surface treatment with special welded seam grinding head system,This model is suitable for all kinds of steel tanks & pipes’ circular welded seams joints’ surface polishing grinding and buffing.such as steel tank circular welded seams and joints.This machine is widely used in medical area,chemical,environmental purification,food,beverage and water filter,etc.

    It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.


    Custom design welded seam polishing solutions are available based on your demands for your steel tank vertical or horizontal welded seam surface grinding and polishing accordingly.


    Steel tank circular welded seam auto polishing machine parameter:

    Normal configuration(customer design acceptable)

    Tank Circular Welded Seam Size

    Tank Shell Diameter

    450-5000 mm

    Weld Seam Width

    ≦ 60 mm / 75 mm

    Tank Shell Length

    ≦6000 mm

    Tank Roller Max.Loading capacity

    1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

    Polishing Precision

    Surface roughness(Ra)

    <=0.25μm

    Production Efficiency

    Polishing working speed

    6~12 m2/h

    Machine Dimension

    900x900x1500 mm

    Input total Power

    /

    8 kw

    Power Supply

    380V 415V / 50Hz 60HZ / 3p or Customization

    Machine Weight

    /

    600 kg

    Color

    Grey/Green/Blue/Red/Yellow Custom design

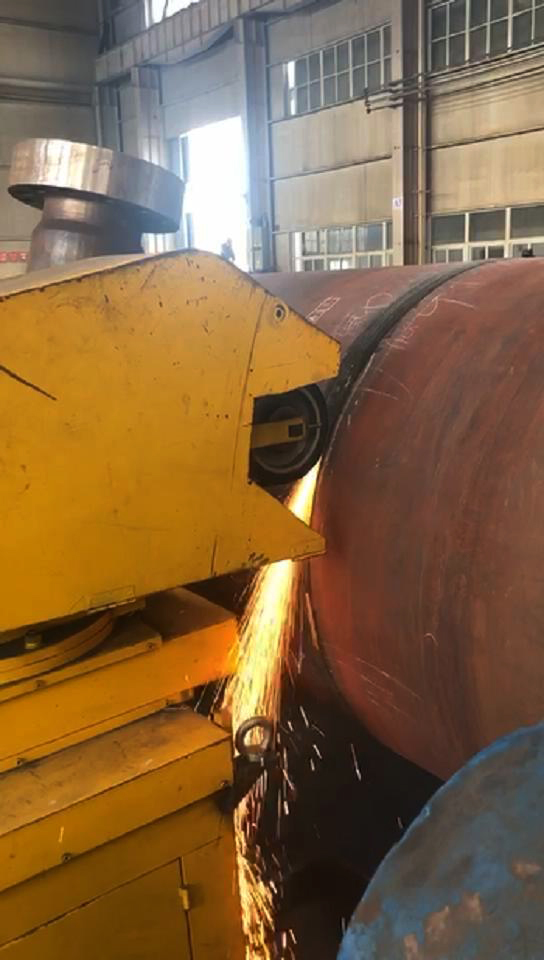

    tank circular weld seam polishing machine (4).JPGtank circular weld seam polishing machine (6).JPG

    Contact Trancar Industries for more polishing machine and solutions.
