Trancar Elbow Internal Mechanical polishing equipment is widely
used widely used in the fields of food hygiene, biomedical grade, electronic clean grade stainless
steel welded pipe equipment,high-purity pipe manufacturing production line equipment,UHP Piping
system,SEMI & FPD etc.How to get right roughness internal surface of 90 degree elbows
with Trancar elbow inside mechanical polishing equipment?Such as ASTM BPE steel 90 degree long elbows
Ra0.2-08 um surface.

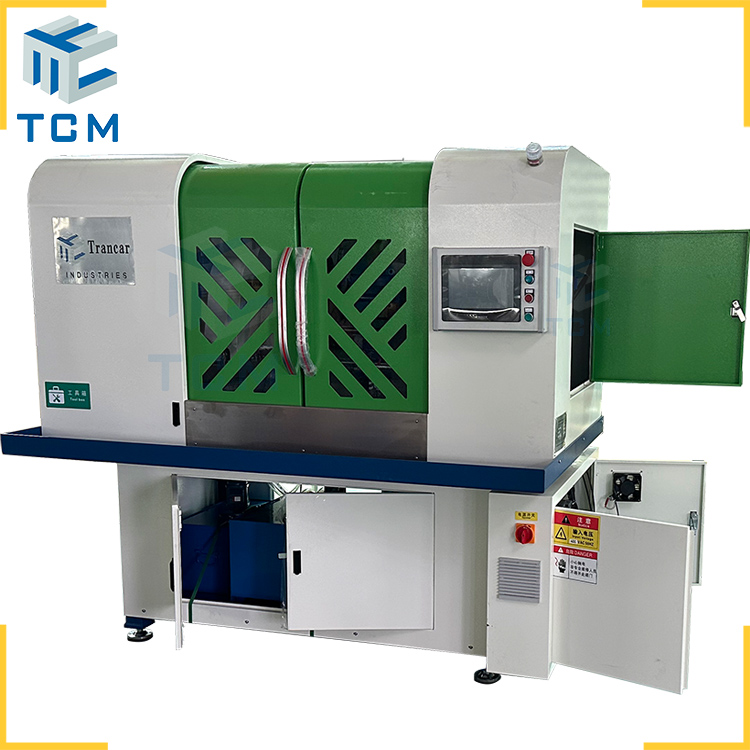

TCM-NP type mechanical automatic polishing machine is suitable for
1/2 inch-4 inch diameter 90 degree elbow bends internal surface grinding polishing.It's
controlled via PLC full automatic system,with higher working efficiency,one person could control at least 3
sets machine,easy to operation.
TCM-NP Elbow internal automatic polishing machine applicable
standards:ISO 3A, ASME-BPE,BA,EP,SMSDINS,long/short elbow pipe
fittingsu-shaped bend pipetee pipe fittings.
Trancar Industries Elbow inside polishing machine Performance
Characteristics:Internal grain surface roughness is veryuniform,quality/big
progress and fixture rapid replacement of three,easy to learn,easy to operation.
TCM 90 degree bend interior automatic polishing machine Technology
Principle:Mitsubishi PLC control of feed speed, polishing revolution is
adjustable, 1/2-2"as the five products at the same time polishing,2.5" 3 "4" for the three products at the
same time polishing.Sheet metal sealing safety protection,grinding oil filtration cycleuse,workshop
without dust/dirt/oil dirties,conform to the ISO 14001 environmental management system.
#Sanitaryelbows,#90degreeelbowpolishingmachine,#bpeelbows
#BPEpipefittings #elbow polishing machine
#elbowinternalpolishingmachine #mechanicalpolishingmachine
Contact for more ss 90 degree elbow ID inside autoamtic polishing
machines & grinding solutions & videos.
Ss 90 degree elbow ID inside automatic polishing machine Main parameter:
SPECIFICATIONS FOR TCM-NP steel Elbow internal polishing machine |
Available polishing elbow data
(working capacity) | Elbow Diameter | 1/2-4 | inch |
Degree | 90-180 | degree |
Polishing precision | Surface roughness(Ra) | <= 0.2-0.8 | μm |
Machine Weight | / | 1300 | KG |
Outer Dimension (L x W x H) | / | 2100x1400x2000 | mm |
Input Total Power | / | 18 | KW |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
Produce Efficiency | / | 180-200 | Pieces/day |
Suitable Polishing Material | Custom design grinding wheels |
Trancar Industries steel elbow bender automatic grinding equipment
delivery and package:
