    Wire descaling machine wire rod automatic rust removing machine

    Ask Lasest Price
    Brand Name : Trancar Industries
    Model Number : TCM-WR
    Certification : CE/ISO
    Price : USD 15000-40000 Dollar per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20 sets per Month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    Wire descaling machine wire rod automatic rust removing machine

    Wire descaling machine wire rod automatic rust removing machine

    TCM-WR Wire descaling machine use a mechanical method to process wire rod surface instead of traditional way acid pickling. wire descaling machine can change the acid washer process.It’s abrasive sanding belts polishing equipment.This belt polishing machine cleans the slight pits,and scratches on the surface of the wire rod.Each set of active rollers and a tension roller supported by the turntable drives the high-speed rotating abrasive belt.For polishing (roller made of aluminum alloy),the rotating speed of the turntable matches the speed of the take-up machine.


    Wire rod surface polishing machine frame uses the structural part,long square box structure.This equipment is composed of spindle, rotary disc, power drive part, straightener,protective cover,and vacuum cleaner.The working principle:Belt is mounted on the turntable with revolution and rotation,belt installed in the right place always close to the wire rod surface,by adjusting the eccentric shaft to complete belt tensioning-releasing,loading/unloading the belt and threading the wire rod,the adjustment of the eccentric shaft lever spring can change the tension of the sand belt.The main drive uses 2 set 7.5kw frequency conversion motor to run through a triangular belt drive spindle.The turntable is connected with the main shaft with a bolt,which is convenient for maintenance and disassembly.The machine is automatically controlled by the SIEMENS PLC program between the machine and the host,and the machine can also switch to separate control.The surface of the steel wire to remove rust through the belt machine completely meets the requirement of the coating. The abrasive belt uses imported zirconium corundum belt or ceramic belt.


    TCM-WR Steel Wire line descaling machine rods polishing machine main parameter:

    Normal configuration(customer design acceptable)

    Wire Rod Diameter

    1-5mm / 5-8mm / 8-16mm / 16-25mm

    Machine Dimension

    (L×W×H) 2650×1050×1300mm

    Abrasive Belts Size

    1600*500 mm / 1350*300mm / 1250*300mm etc

    Production Efficiency

    Polishing working speed

    120-200 m/h

    Input total Power

    35 kw

    Power Supply

    380V 415V / 50Hz 60HZ / 3p or Customization

    Machine Weight

    /

    2100kg

    Color

    Grey/Green/Blue/Red/Yellow Custom design

    For option

    Dust Collection system is available during polishing.


    Trancar Industries steel wire automatic polishing machine packge and delivery:


    Contact Trancar Industries for more wire polishing machine and solutions,custom design service is available.

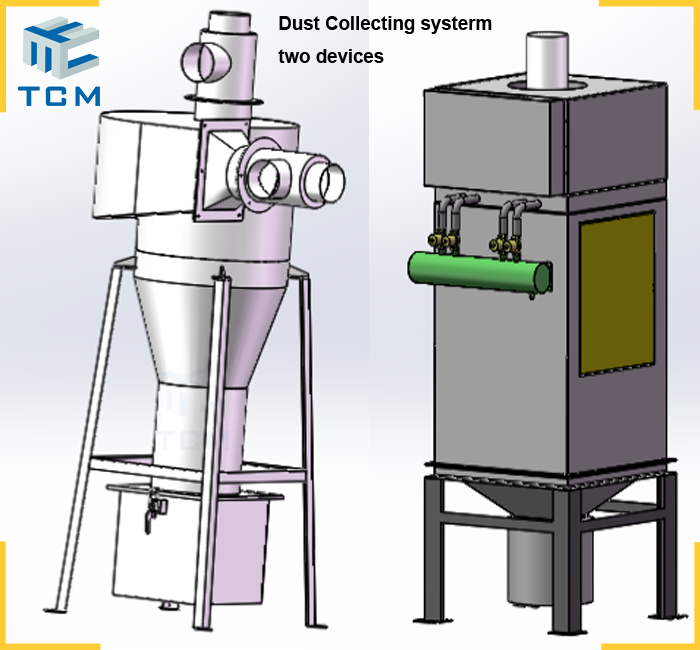

    Wire polishing machine Dust collector system for your option:
